G657A2 SM Outdoor FTTH Drop Cable 4 Core Armoured Fiber Optic Cable

Name: G657A2 SM Outdoor FTTH Drop Cable 4 Core Armoured Fiber Optic Cable
Brand: JIANGHONG or OEM
Price: 1 USD

China G657A2 SM Outdoor FTTH Drop Cable 4 Core Armoured Fiber Optic Cable wholesale

Brand Name : JIANGHONG or OEM

Model Number : GJYXCH

Certification : ISO,TLC

Place of Origin : Sichuan, China

MOQ : 20,000 Meters

Price : Can Be Negotiated

Payment Terms : L/C, T/T

Supply Ability : 50000KM per month

Delivery Time : 5-8Days

Packaging Details : Carton+Fumigated Wooden Tray

Product name : 4cores Ftth drop cable

Core : 4cores

Application : Communication wiring

Type : SM Fiber

Fiber Model : G657a2 G657a1 G652d

Sheath Material : LSZH

Package : caton+pallet

Length : 3KM/Roll

Contact Now

4Cores G657A2 Outdoor Fiber Optic Cable With Messenger drop cable

Description

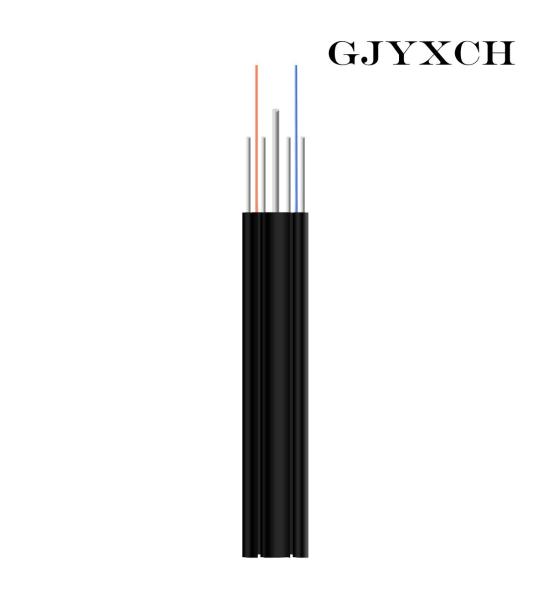

Single mode 4cores outdoor FTTH drop cable is positioned in the centre. Whit a steel wire strength member is also applied.Two parallel Fiber Reinforced Plastics (Steel wires) are placed at the two sides. Then the cable is completed with a black LSZH sheath.

Features

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

Low smoke, zero halogen and flame retardant sheath.

Applications

Outdoor building wiring

Performance

Type	Attenuation		Tensile		Crush		Minimum Bending radius
Type	1310nm	1550nm	Short term	Long term	Short term	Long term	Minimum Bending radius
GJYXCH	0.36dB/km	0.25dB/km	600N	300N	2200N	1000N	40.0×Cable-φ
